What would you say if one day you would have found that:
Would you think it is not possible?
Think again!
It actually exists, and yes it has a very nice fully featured Graphical User interface.
This GUI interface is featuring:
You think you are in dream land?
Well then, I will not promise you the moon light my reader, but I will surely give you the Solar sunshine in this article ;)
Let me further excite you with the promise of:
Amazingly this tiny simple OS is not a trimmed down version of another one. Neither it is based on any other OS.
There are no dependency and no external LIBs used.
Instead everything is fully rewritten from scratch, using modern and very well organized ASM (no spaghetti) and even more it takes a very special and bold cooperative approach in order to reduce context switch while still offering Multitasking and GUI.
To name a few bold concepts:
This OS is the only modern OS with a general purpose GUI that exposes full control to the hardware and is not building protective concentric walls around its Kernel Castle.
Because of this original approach it gains great speed and simplicity.
Yes I know you can break me, but since it is so easy by design, there is also no glory in doing this... so why doing it?
Creation and Construction my friend are much more honorable, valuable and harder to achieve than entering a simple house that has no locked doors or "windows".
Besides my core shell is read only, small, simple, fast and does not auto run nothing.
How on this Earth are you going to convince me to compile and insert your code into my GUI Kernel?
Come with me, follow me into this the exploration of a real technological dream. A passionate dream of simplicity, efficiency and the clarity of mind; A dream that has a name, and this name is real: "Solar OS"
Let us Find it, Get it, and Run it!
Here are the links:
Of course you only need the binary file for a test run.
If interested you can check the main site for instructions or reference. You can check the screenshots section to get a first look of the GUI and finally you could use the forums for asking questions and support.
And yes it is a special build made for this article. But the last released version is very close behind: on 2006.06.11 and has mainly the same features.
You will notice the claim that this OS does run very well into Virtual PC. Virtualization is on vogue now and it will allow us not to deal with partitioning our Hard drive, using floppy or writing bootable CD-ROMS.
It is a very good choice for an OS developer to support at least a few virtual machines. This way you can test freely without any danger of corrupting or damaging your hardware
In fact I always have a few virtual machines packed up with empty or formatted HDDs floppy and CD-ROMS images ready for such "no danger" testing of new hobby OSes. I am going to use Virtual PC for this test but that is my preference.
Now it is time to observe another special feature of this OS: it can run without a HDD or CD-ROM, just straight up from a floppy. So let us hurry up a little and simply let the floppy image boot in Virtual PC
Oh, there is nothing like the first boot of an OS. You know that special feeling: the first kiss, the first girl, the first car, the first boot of Solar OS... ok, not necessary in this order.
So, find the location where you have downloaded the sol_os_2006_06_21_bin.zip file. Unzip it and find the file named "os8.dsk" inside
If you do not have one, it is time to create a test Virtual machine:
After a brief loading message you should see something like this:
Observe for a second the GUI resolution options. The author recommends the 800x600x16 for performance reasons but there is nothing stopping you from using 1280x1024x16 or even greater if you have a powerful CPU.
For a genuine explorer the S-Special options is much to obvious not to try it. And it brings an additional screen like this:
Obviously this has something to do with transferring the OS on a HDD but since we might have selected NO HDD in our Virtual Machine we leave this "special" location for now, and return to the original resolution selection screen above.
In order to reduce the size of the screenshots I will choose a smaller 640x480x16 resolution and fire up Solar_OS.
after selecting resolution and pressing the Enter key you will be in face of this screen:
Explore a little and play ;)
Ha? Yes, you can design dialogs right from the OS interface. For example:

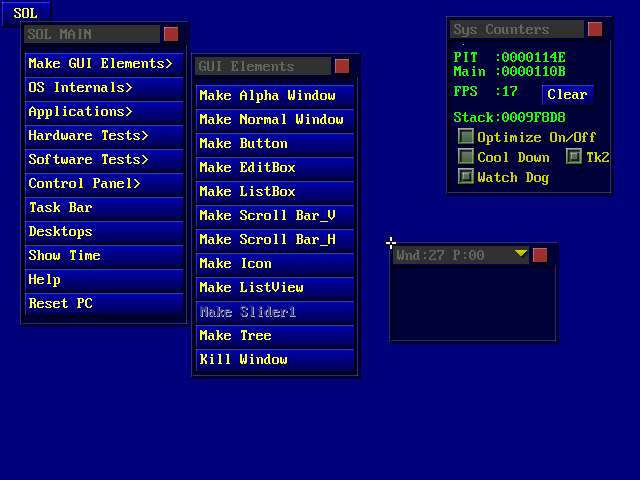

The starting point should look somehow like this:
You can drag move a window from the caption or from any part that does not contain a control. For an empty window this means anywhere but not on the RED close button or the yellow minimize/hide button. If you accidentally minimize a window, you can bring it back to existence with the Tasks Application (press Alt+T to show tasks)

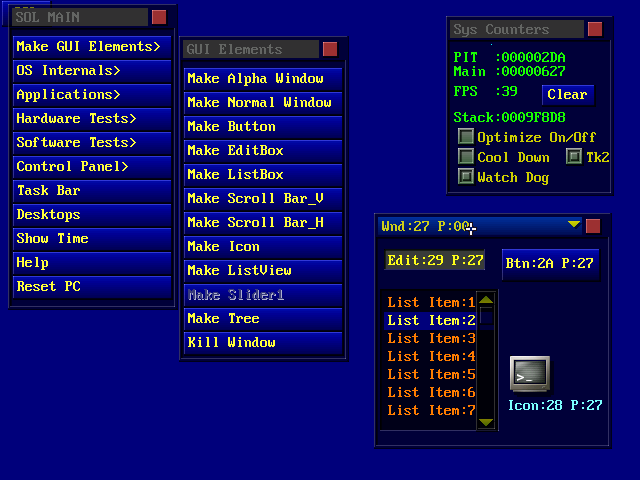

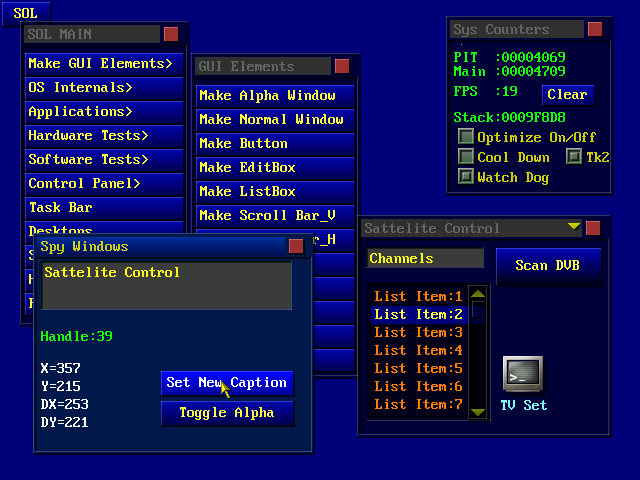

After adding controls result could look like this:
Now let us customize it a little ;)
After customization the end result could look like this:
Of course your mileage might be different, but the limit is your fantasy.
On the "Scan DVB" button ACT_LEFT_DOWN (on mouse click) message, you could write the code that does direct I/O to the hardware for scanning channels on the DVB stream. On return you could fill up the Listbox with the names of the available channels.
As an alternative, you could also make a request to the DVB driver queue and provide a callback routine, fast exit and wait.
When the DVB scan is complete your Callback will be invoked by the driver and you can fill up the listbox at that time.
For testing and experimentation you will not have to write a driver because direct I/O to ports and hardware IRQ handling is allowed in Solar OS.
But let us not dream about being a programmer.
Instead of a programmer let us be a desktop user wanting to see a picture:

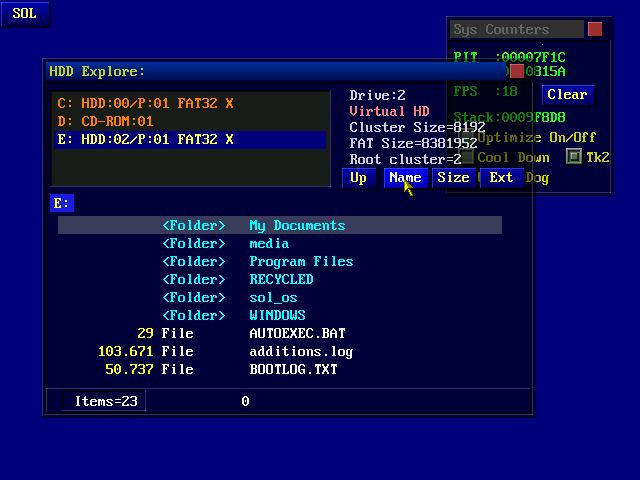

Should look like this:
Then
Note:
This assumes that a FAT32 HDD was pre-setup with some media BMP files
and added to the Virtual Machine setup.

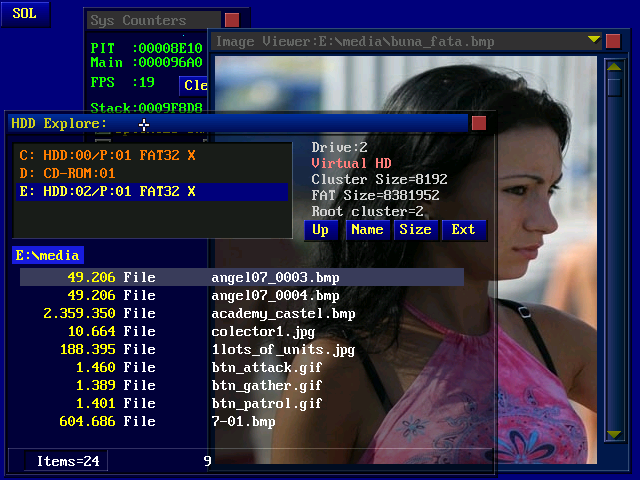

OK, on my setup it looks like:
Observe the translucency on top of this nice picture ;)

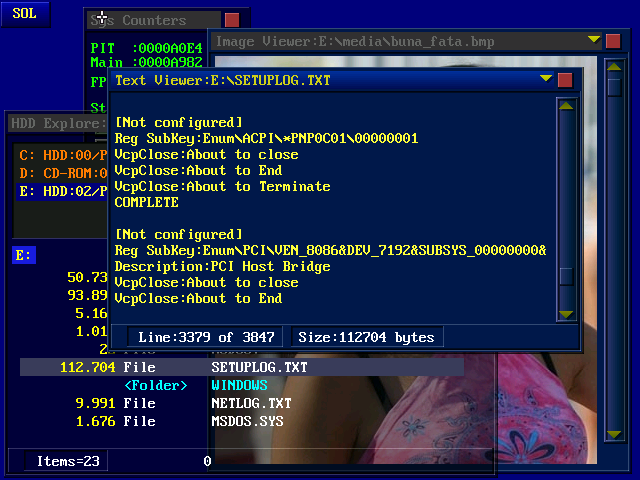

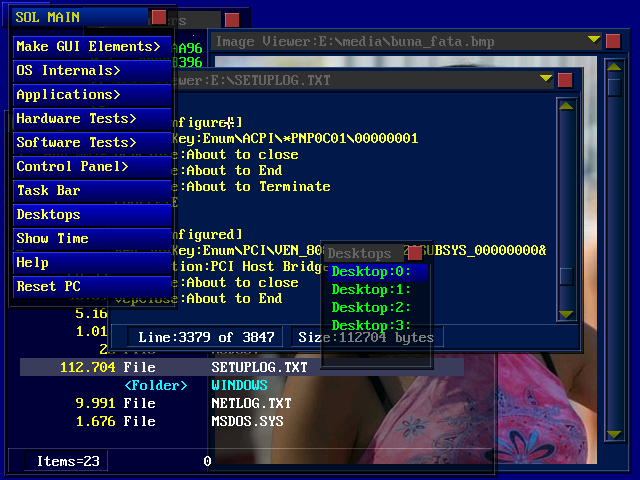

Or maybe you want to press Enter on a text file:
Is it just me or this desktop (640x480) is getting cluttered. No problem: Sol->Desktops->Desktop:1: ...
Yes! At least some extra free space
Oops, but how do we come back... Guess what: again Sol->Desktops but choose Desktop:1: this time
OK, Now I will share a few little "secrets" from the Help file:

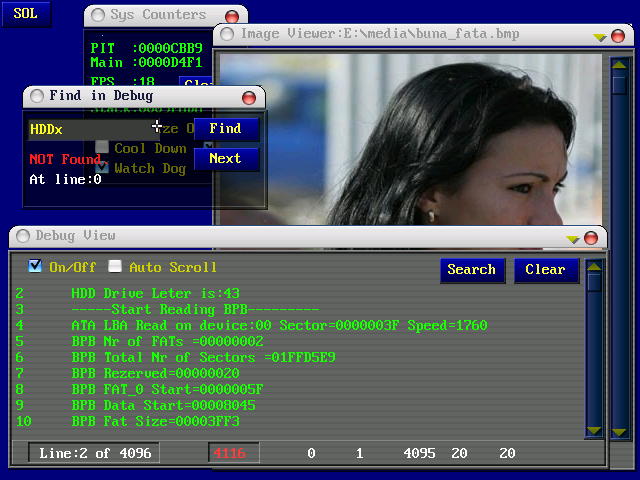

You can observe the "aquatic" skin below:

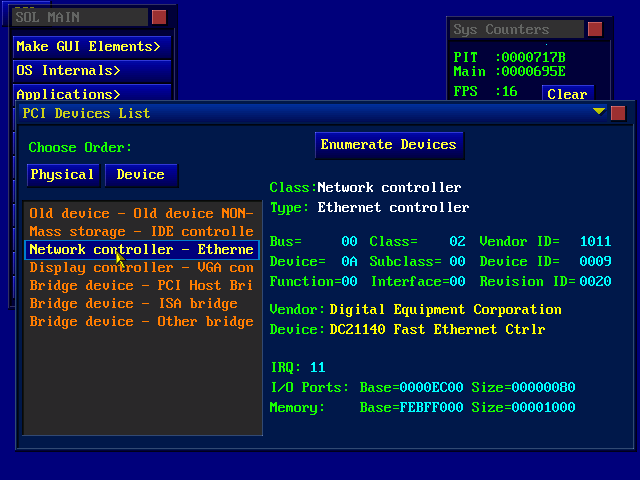

Let us shift focus to exploring the hardware recognized by Solar_OS. You can find hardware info by running the following applications:
This will show information about:
This application will show you information about:
Tip:
You can drag the bottom right corner of the
Devices List box and watch the text on the right panel
auto rearrange and word wrap.
On a real computer you will notice that Solar OS recognizes a wider range of hardware compared to what it can really use. But what does it really need to run?
Here is a list with the hardware requirements:
Well, as you might have guessed Solar OS is not yet finished nor optimized.
However there is a checkbox named "Optimize" in the System Counters application. What could this be?
Together with the FPS counter and the ever moving dot they make a good testing pad for benchmarking, let us consider this as an invitation.
First you must disable the "Tk2" and "Cool Down" options from the System Counters window. Both of them try to reduce the CPU utilization of the OS in order to keep your CPU "cool and quiet" on laptops.
But of course for benchmarking we do need full power.
As soon as you disable the above options you can observe a significant speed up in FPS. You can notice it better if you press the "Clear" button. This button acts as a kind of refresh.
But wait it can get even better: You can activate the "optimize" checkbox.
With only the Sol Button and the System Counters application it ca get to 1200 fps in 640x480x16...
Now add a few translucent windows in the upper part of the screen, and it will still stand around 700 fps.
Wow all this with simple generic frame buffer "drivers"!
The network is core technology in Solar OS. It supports Raw packets, ARP, IP, ICMP, UDP.
It also supports multiple network cards and PCI IRQ sharing.

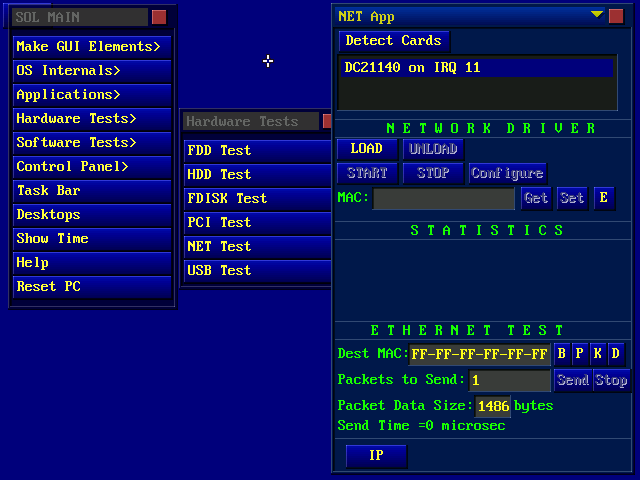

1) Go to SOL->Hardware tests->Net test

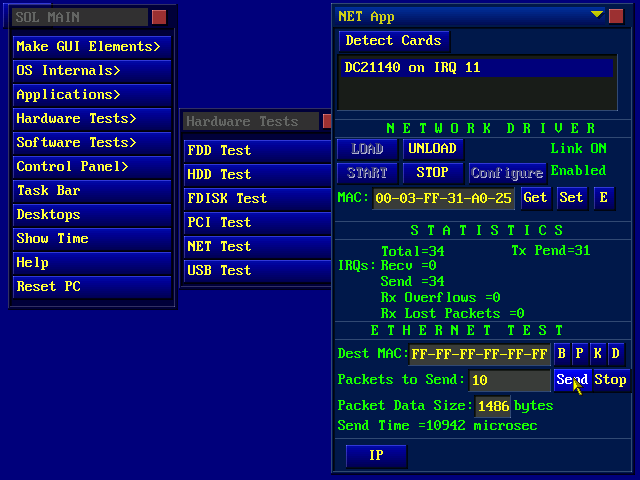

You can now press the SEND button in the lower part of the window and you will see VPC's network light blink.
In fact you are just using the "raw packet" interface of Solar OS. But as funny as it might look, sending packets into the void is not our main target.
So let us setup and then start the IP network layers:
Press the IP button

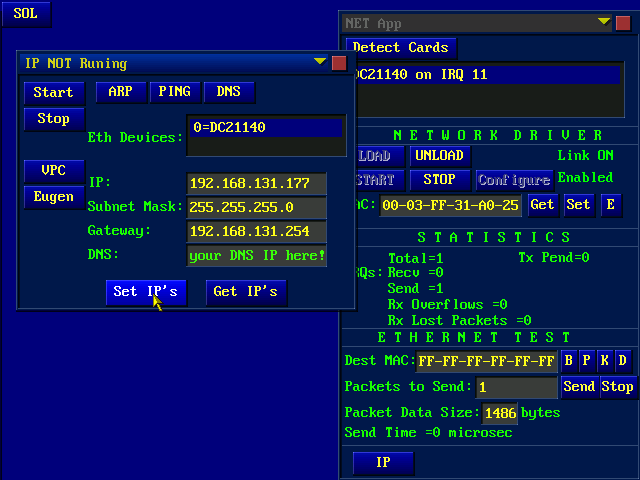

In the IP Window select again the DEC 2114 network card, and then continue by entering the IP, MASK, Gateway and DNS in the corresponding edit fields.
For a real PC you should enter your specific values. However Virtual PC is a little strange in this issue and you MUST enter the following values:
Or on newer versions you can get help from the VPC button that will pre-setup the default IP values. However please edit the DNS IP accordingly!
Like this:
Once finished press "SET IP's" button and then the Start button. As a consequence you should see the caption of the IP window changing int: "IP Running".

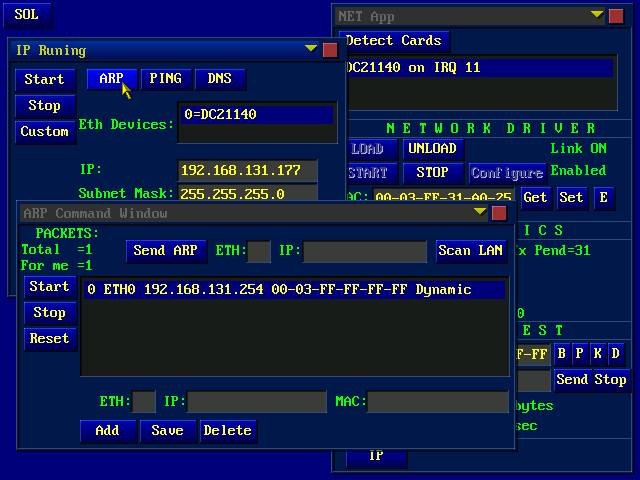

Press the ARP button. You should see something like this:
With at least one Dynamic record for your Gateway's IP. In fact a discussion was made in between Solar_OS and the Gateway inside VPC using the ARP protocol. This resulted in Solar OS obtaining the MAC address of the gateway.
Very good, now let us proceed even further...

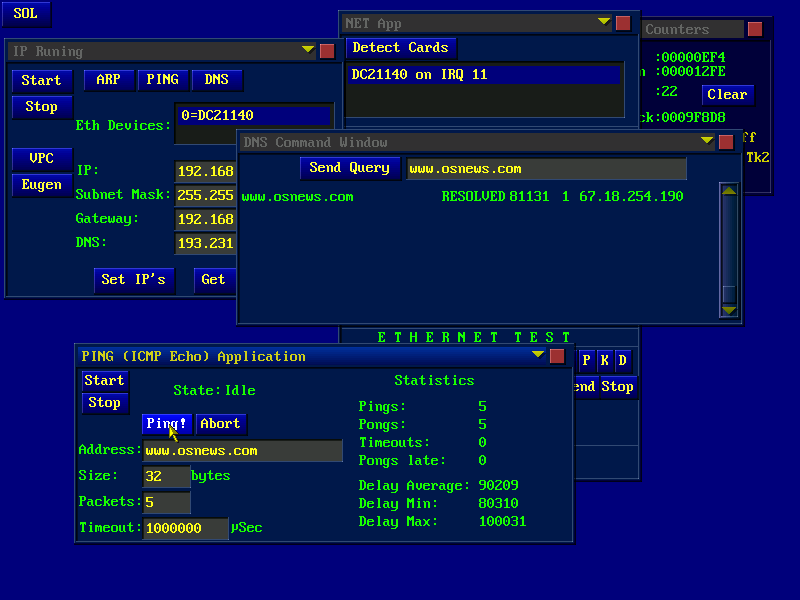

Insert the address "www.osnews.com" into PING! Edit box and then press the PING! button. You should see something like this:
Or you can first play with the DNS window and request a DNS record for www.osnews.com before sending out a Ping.
Firewalls might not like the pings originating from inside Solar OS and refuse to send them out. In fact I did have to disable Zone Alarm briefly during this test. Take care!
Another option would be to add OSNEws to the list of trusted zones ;) Such options depend on your firewall type and levels of protection.
Beware OSNews because 2x5 pings from Solar OS have touched your servers on 2006_06_21 affirmatively 01 AM.
Hurry up and check your log files and save the precious first contact packets ;) they did contain some funny OS data signature!
Emulated, and without virtual additions, the speed of network inside VPC is NOT very big.
However try it on an real computer with a Realtek 8139 10/100 network card. You will be amazed ;)
Rumors are that a P1 at 166Mhz with a GUI in 800x600x8 (to reduce video bandwidth) at full speed was able to force:
This network speed comes from the special ring-o IRQ driven architecture of the drivers and the avoidance of redundant memory copy of packets.
The merit for this very good network speed belong to Eugen Brasoveanu who designed and implemented it for SOL.
However... Eugen did not even start to really optimize it; and he has a passion for speed optimizations!
Ok, let us talk dirty now ;) I guess you can skip to the next chapter if programing is not your thingy...
In fact how does an application for Solar_OS look like?
Because it does look like this:
app_hello_world_sz_caption db "Hello World",0 app_hello_world_sz_msg db "Welcome to the Hello World Application!",0 App_Hello_World_Init PROC STDCALL USES esi LOCAL @@wnd_handle:dword ;------------------------------------ ; 1) Create Main App Window ;------------------------------------ mov eax,FLAG_WND_ALPHA+FLAG_WND_MINI Call API_Window_Create STDCALL,[desk_crt],132,105,240,112,eax,WND_TYPE_TOP mov [@@wnd_handle],eax ;------------------------------- ; 2) set callback and caption ;------------------------------- Call API_Window_Set_Callback STDCALL,[@@wnd_handle],OS_CALL_AFTER,offset App_Hello_World_Main_Callback Call API_Window_Set_Caption STDCALL,[@@wnd_handle],offset app_hello_world_sz_caption ;-------------------------------------------- ; 3)this is it! END of Application init code ; only callback will be called by OS ; from now on ;-------------------------------------------- ret ENDP ;------------------------------------------- ; The Callback routine for main Window ;------------------------------------------- App_Hello_World_Main_Callback PROC STDCALL USES ebx,esi ARG @@wnd_handle:DWORD,@@wnd_action:DWORD,@@wnd_param1:DWORD,@@wnd_param2:DWORD ;-------------------------------------- ; a case based on message/event value ;-------------------------------------- .IF [@@wnd_action]==ACT_PAINT_CHILD ;------------------- ; Wnd::On_Paint ;-------------------- Call API_Text_Draw STDCALL,[@@wnd_handle],16,32,offset app_hello_world_sz_msg,01fff00h .ELSEIF [@@wnd_action]==ACT_LEFT_DOWN_CHILD ;----------------------------------- ; Wnd::ON_Mouse_Left_Down :) ; todo: add click code here ;----------------------------------- .ELSEIF [@@wnd_action]==ACT_LEFT_UP_CHILD ;----------------------------------- ; Wnd::ON_Mouse_Left_Up :) ; todo: add click code here ;----------------------------------- .ELSEIF [@@wnd_action]==ACT_KEY_CHILD ;----------------------------------- ; Wnd::ON_Key :) ; todo: add keyboard code here ;----------------------------------- .ELSEIF [@@wnd_action]==ACT_CLOSE_CHILD ;--------------------------- ;Wnd::Destructor ;todo:add code here ;--------------------------- .ENDIF ;---------------------------------------- ; by convention you must return zero ; or the parent will terminate you ;---------------------------------------- xor eax,eax ret ENDP ;------------------------------------- ; End of hello world application ;-------------------------------------
Need to say it could have been much shorter on screen if I would have used the API_Window_Create_Ex into the initialization phase and reduced the .ELSEIF case handling to bare minimum.
However I did considered it is better to also show other API's in use and a more general application layout. I guess nobody is going to limit itself to writing only Hello world ;)
Honestly it is very simple, all you have to do is:
The whole thing will compile in just a few bytes (35 to 100 bytes depends on strings, compiler and moon shine) of uncompressed native binary code and will run "as it is from" inside the kernel. In fact you can go to Software Tests-> Hello World and run it ...
The application template is extremely simple and efficient because it is based on Callbacks. As a programmer you just have to fill in the event handling code for each message received by the Callbacks.
This makes up for very elegant, event based and OOP like programming style even in ASM.
When run from outside the kernel (from HDD for example) Solar_OS applications have to be PIC. That is because the kernel will load and execute each application at the first free address location. Because of this you will notice PIC handling with Delta tricks inside the SDK for external "out of kernel applications".
This PIC issue is being worked on right now and there are PE and ELF loaders in progress.
The loaders will handle PIC code by compiler generated relocations and in a transparent way for the programmer.
In fact the PE DLL loader/mapper is already almost functional And you can observe its messaged in the Debug View applications if you press Enter on an .DLL external file in HDD_Explorer
When this is finished there will be no difference anymore between "inside kernel" and "outside the kernel" applications.
In a world with big concerns about security the choices made by SOLAR_OS might make many worry.
In fact most people are locked in a "ring inside ring" of protection scheme. This generates the everlasting monolithic versus micro-kernel debates.
Solar_OS chooses another path that is out of this "ring box" approach.
We consider there is no need for costly protection against trusted applications. (hardware and software resources)
And unlike micro-kernels we do not consider that the trusted code base should be very little. In fact we would like the trusted code base to expand as much as possible.
Trusted are:
As you can see Solar OS lives in a world that promotes simplicity, open source code and speedy compilations.
Because those trusted code is embedded inside the trusted Kernel and fast loaded in a few seconds from any non writable media like:
And because a HDD is not even needed and nothing is auto started from external media...
Well, not unless it is able to write to a non writable device or convince you to write, design, compile and insert a malware code sequence inside your own kernel ... Now really, are you going to fall for that?
IMHO, armed with a white listed GUI hardcore shell you can safely explore further...
Sadly but true... and honestly in a real world this can not be ignored either. And once in a while one might need to run "untrusted code".
So what is the Solar_OS answer to his?
This "Sandbox" for untrusted applications is a core concept in Solar_OS. This way the slowdown and complexity is right where it should be: ONLY around the untrusted code!
To be honest with the reader: this sandbox is not yet implemented. But is it scheduled to be finished this year. And then my friend we can start a new contest: aim, shoot and fire in order to try and get out of the Solar_OS sandbox.
With the "white hat" and hands on ASM experience of the Solar_OS author I bet it is going to be some nice proving grounds.
Solar_OS new security concept is:
Choose simplicity, trust, speed and fully unbendable security.
All this in one third of a floppy ;)
there is still enough space left on this floppy (not to mention CD) for
the Browser internet trio...
After all this was the whole idea: To design and implement a modern Desktop OS that is original, and to make choices that do not end up into walking the same path as Windows or Linux or others.
"In a world without walls and fences who needs windows, gates, penguins or daemons..."
All you need is the SOLAR light shining on your own custom path of knowledge.
Solar_OS is so simple that anybody can understand it in 1 month and then in good will hack it, customize and evolve it to meet your own personal needs.
Clearly there are some unfinished pylons
and unplaced corner stones still missing from Solar OS:
Yes there is a SDK available on site.
Yes there is still a long ride to be taken until many of those promises are to be full filed...
But I do bet it will be a ride full Joy, Art and Sunshine... a Solar Sunshine that is ;)
Until then my friend Solar_OS simply and "quietly" stands there on the internet... waiting to be discovered.
Electronics and Artificial Intelligence in part university educated and in part a self educated programmer.
He is passionate by low level programming, ASM and hardware interfaces, Go, Zen, personal spiritual evolution, and bold debates about human species direction of evolution.
You might also know him as the team leader and architect of the Hostile Encounter RTS game project.
He made his first OSes on 8 bit CP/M machines and on ZXSpectrum clones.
Currently he works full time for AVIRA Soft srl Romania, a subsidiary of Avira (formerly H+BEDV) from Germany, the well known producer of AVIRA Antivir solutions.
Previous workplaces include: Glasword US, MoreTV Munich, Deuromedia Brasov to mention just a few.
The other important people that helped him in creating Solar_OS are:
The author will also like to mention special thanks to:
Since they kindly helped at various moments into his career.
you can contact me at: bogdanontanu[at]yahoo[dotty]com
I will like to mention that during the writing
of this article and the creation of Solar OS,
NO PIXELS have been harmed on purpose...
To the best of my knowledge :)
This article is old, it was initially written for OS News where it was accepted but never published. By the time it was posted on SOLAR_OS site (2007_06_24 - one year later) the PE loader of SOLAR_OS was functional so PIC code was no longer necessary and the author is no longer working at his full time job. Also SOLAR_OS was improved and it is not open source anymore. Because of this the link to the source code is broken.
However besides some minor spell checking the article was kept in it's original form for historical reasons.
